Products & Services
Professional Repair · Precision Testing · One-Stop Supply

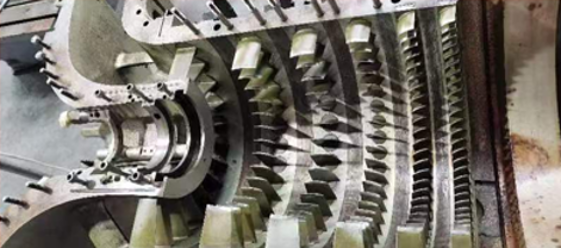

Gas Turbine Spare Parts Repair and Refurbishment
Gas Turbine Spare Parts Repair and Refurbishment
We provide comprehensive spare parts repair services for gas turbines, gas internal combustion engines, and compressors, including precision inspection, professional restoration, and remanufacturing. Backed by advanced processing equipment and a skilled technical team, we ensure repair quality meets international standards.
Service Recipients
Gas turbines, gas internal combustion engines, compressors
Repair Range
- • Blade repair (turbine blades, rotor blades, stator blades)
- • Flame Tube Repair and Remanufacturing
- • Nozzle and transition section repair
- • Repair of other hot aisle components
Technical Advantages
Achieve additive remanufacturing of hot-section components for in-service gas turbines to reduce costs and shorten lead times. Repair processes are standardized and generalized with high technical barriers; enterprise standards have been established.

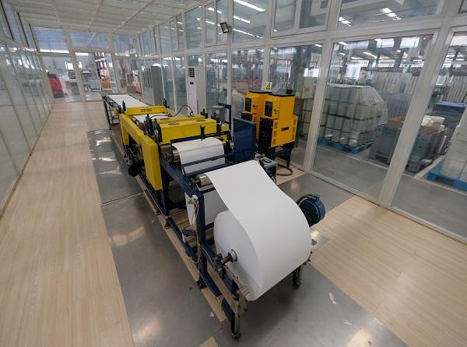

Filter Cartridges
Gas Turbine Air Intake Filter Sales
Provides professional filtration solutions for gas turbine inlet systems, effectively preventing dust and particles from entering the compressor. Reduces blade fouling and power loss to ensure efficient and stable unit operation.
CSGTMV Medium Efficiency Cassette Filter
As the primary filter in the gas turbine filtration system, it effectively prevents dust and particulates from entering the gas turbine. This reduces fouling of compressor blades, lowers power consumption during operation, maximizes generator output, minimizes the frequency of compressor blade washes, and ensures reliable gas turbine power generation.
Product Basic Information
- • Frame: Plastic frame
- • Filter Media: Dual-layer high-density glass fiber
- • Separating adhesive: Thermoplastic adhesive
- • Flange thickness: 21mm
- • Continuous operating temperature: ≤70°C
- • Recommended final resistance: ≤450 Pa
Product Features
- • Efficient dust collection
- • Premium frame structure design
- • Maximized dust collection, lightweight
- • Dual-layer filtration
- • Filtration efficiency grade: M6/F7/F8/F9
- • Flame Retardancy Rating: UL900
Product Specifications & Models
| Model | Standard Size/mm | Filtration Efficiency EN779:2012 | Filtration Efficiency ISO 16890 | Rated Airflow / CHM | Initial Resistance / Pa | Final Resistance / Pa | Filtration Area /sq ft |
|---|---|---|---|---|---|---|---|
| CSGTMV65 | 592×592×292 | M6 | ePM2.5 65% | 4250 | 110 | 450 | 21 |
| CSGTMV85 | 592×592×292 | F7 | ePM1 50% | 4250 | 120 | 450 | 21 |
| CSGTMV95 | 592×592×292 | F8 | ePM1 70% | 4250 | 135 | 450 | 21 |
| CSGTMV98 | 592×592×292 | F9 | ePM1 80% | 4250 | 150 | 450 | 21 |
| CSGTMV98XL | 592×592×440 | F9 | ePM1 80% | 4250 | 115 | 450 | 31 |
CSPN Medium-Efficiency Bag Filter
As a pre-filter for gas turbine filtration systems, it works with downstream filters to effectively prevent dust and particles in the air from entering the gas turbine. This reduces fouling of compressor blades, lowers power consumption during operation, maximizes generator output, minimizes the frequency of water washing for compressor blades, and ensures reliable gas turbine power generation.
Product Features
- • Outer frame material: Galvanized steel sheet (aluminum profile available as an option)
- • Filter Media: Nanofyne+™ Flame-Retardant Nano Filter Cotton
- • Filtration efficiency: M6/F7/F9 (EN79-2012)
- • Continuous operating temperature: ≤70°C
- • Recommended final resistance: ≤450 Pa
Product Specifications & Models
| Model | Standard Size/mm | Filtration Efficiency EN779:2012 | Filtration Efficiency ISO16890 | Rated Airflow / CHM | Initial Resistance / Pa | Final Resistance / Pa | Filtration Area /sq ft |
|---|---|---|---|---|---|---|---|
| APN65-8P | 592×592×650 | M6 | ePM2.5 65% | 4250 | 80 | 450 | 6.2 |
| APN85-8P | 592×592×650 | F7 | ePM1 50% | 4250 | 95 | 450 | 6.2 |
| APN95-8P | 592×592×650 | F8 | ePM1 70% | 4250 | 110 | 450 | 6.2 |
| APN98-8P | 592×592×650 | F9 | ePM1 80% | 4250 | 125 | 450 | 6.2 |
CSPG Medium-Efficiency Bag Filter
One of the biggest challenges in gas turbine inlet systems is rain ingress or filter saturation, which can cause a rapid pressure drop rise, turbine shutdown, and severe blade fouling from sub-micron salt-laden droplets and hydrocarbons. This series of bag filters helps overcome these challenges with high operational stability and cost efficiency, making them ideal for pre-filtration of intake air in coastal, offshore, and other high-humidity environments.
Product Features
- • Heat-resistant up to 280°C
- • Strong antistatic performance with stable filtration efficiency
- • High corrosion resistance: resists acids, alkalis, salts, and oils
- • Durable with a long service life
- • High breathability, low resistance, superior energy efficiency
Product Basic Information
- • Filter Media: High-Performance Fiberglass
- • Frame material: Galvanized steel, aluminum alloy
- • Operating temperature: ≤80°C
- • Filtration efficiency: M6/F7/F8 (EN79:2012)
- • Recommended final resistance: 450 Pa
Product Specifications & Models
| Model | Standard Size/mm | Filtration Efficiency | Rated Airflow /CHM | Initial Resistance/Pa | Final Resistance/Pa | Filter Area (m²) | |
|---|---|---|---|---|---|---|---|
| EN779:2012 | ISO16890 | ||||||
| APG75-8P | 592×592×650 | M6 | ePM2.5 65% | 4250 | 70 | 450 | 6.2 |
| APG85-8P | 592×592×650 | F7 | ePM1 50% | 4250 | 85 | 450 | 6.2 |
| APG95-8P/12P | 592×592×650 | F8 | ePM1 70% | 4250 | 100 | 450 | 6.2/9 |
| APG98-8P/12P | 592×592×650 | F9 | ePM1 80% | 4250 | 115 | 450 | 6.2/9 |
Contact us for various models. Beyond the products listed, we offer additional specifications not shown here and can provide customized filtration solutions tailored to your needs.
Expansion Joints and Flexible Connectors
Expansion Joints & Flexible Connections – Professional Supplier of Metal Bellows, Non-Metallic Compensators, and Metal Hoses

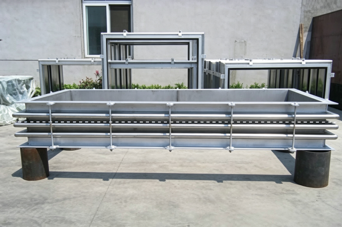

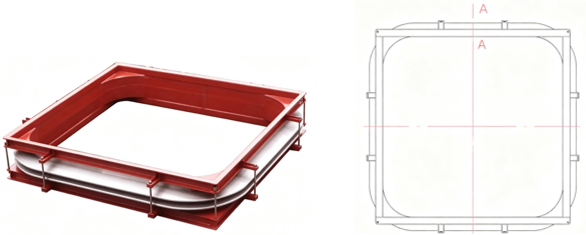

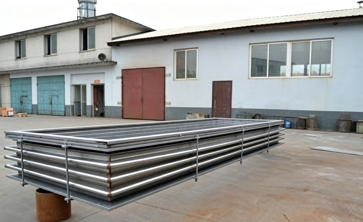

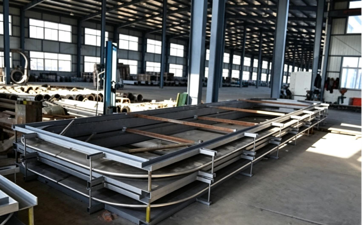

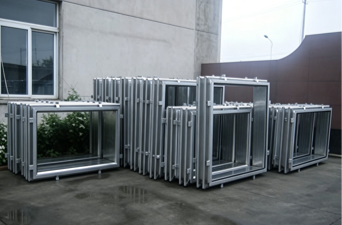

Rectangular metal bellows expansion joint
Our factory's rectangular metal bellows expansion joints are optimized per EJMA standards. Customizable in material, wave profile, and structure, they offer excellent flexibility, high temperature resistance, corrosion protection, and long fatigue life.
Application Areas:Primarily used for connecting gas turbine exhaust systems, turbines or condensers, water heater exhaust ports, pressure fan seals, waste gas discharge pipes, air-cooled heat exchangers, precipitators, and other large-scale steam and piping systems. Also applied to gas or dust-laden gas pipelines and fan outlets to absorb displacement or dampen vibration.

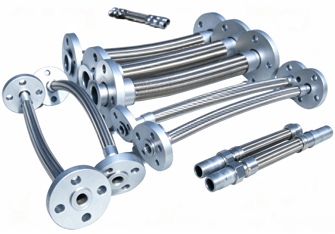

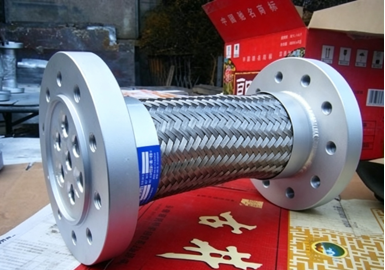

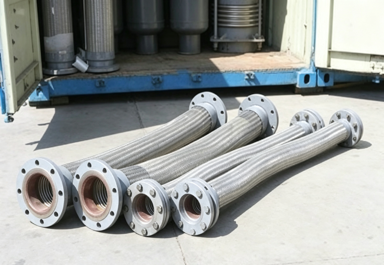

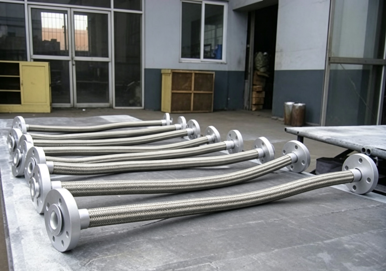

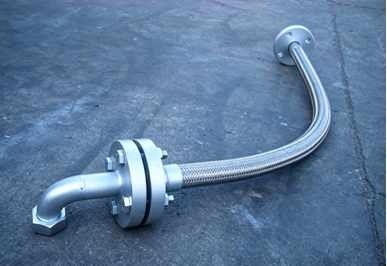

Metal Hose
The stainless steel metal hoses developed and manufactured by our company comply with the GB/T14525-1993 standard, featuring large diameters, high pressure resistance, high temperature resistance, and corrosion resistance.
Application Areas:Widely used in oil, chemical, metallurgical, shipbuilding, aerospace, gas pipeline networks, refrigeration, automotive, pharmaceutical industries, and highly praised by customers.

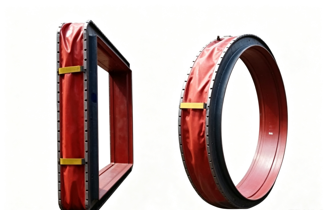

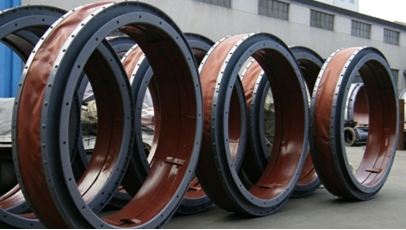

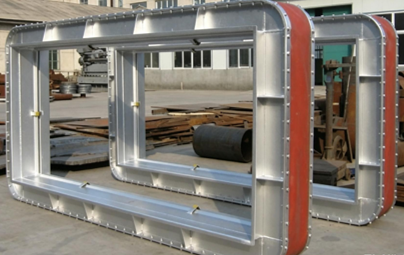

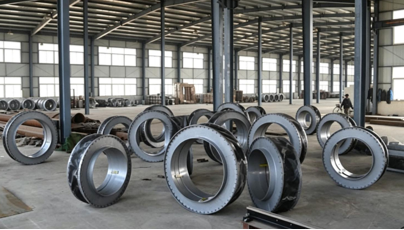

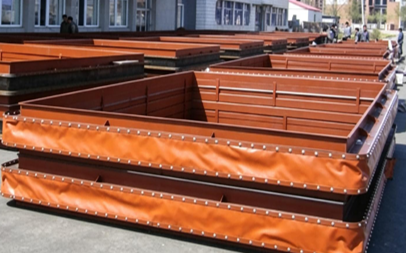

Non-metallic Expansion Joint
Non-metallic expansion joints consist primarily of a flexible compensator (non-metallic material), end connectors (flanges or end pipes), adjustment components (threaded tie rods), and thermal insulation materials.
Application Areas:Gas turbine exhaust ducts, desulfurization systems, flue gas and air ducts for various industries, exhaust systems, coal-fired boilers, circulating fluidized bed boilers, and waste heat boiler flue gas and air ducts.

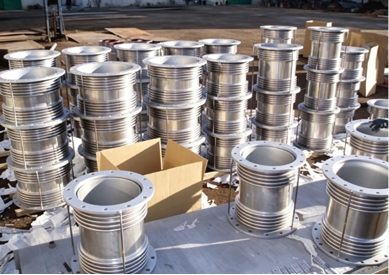

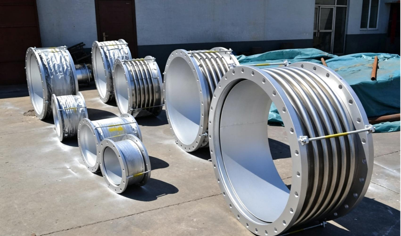

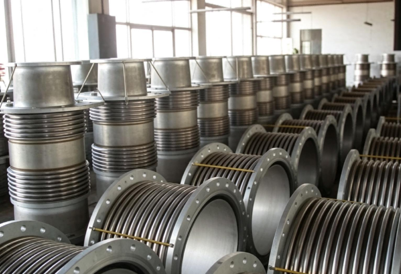

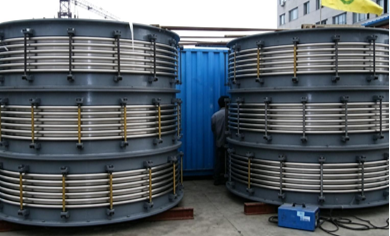

Axial Pressure-Actuated Bellows Expansion Joint
Our company produces axial metal bellows expansion joints optimized according to the American EJMA standards. While meeting domestic market demands, our products are also exported to 22 countries worldwide. Key features include high-temperature resistance, high-pressure tolerance, corrosion resistance, fatigue resistance, and wear resistance.
Application Areas:Widely used in aerospace, maritime, petrochemical, metallurgical, power generation, information technology, industrial equipment manufacturing, and engineering piping systems to ensure high safety performance when transporting hazardous, toxic, flammable, or explosive media. This prevents leaks that could contaminate oceans, the atmosphere, and industrial facilities.
Contact us for various models. Beyond the products listed, we offer additional specifications not shown here and can provide customized filtration solutions tailored to your needs.
